VRS 55 Enduro Sensor Specifications

  1. Overview
  2. VRS 55 Enduro
  3. Product Information & Specifications
  4. VRS 55 Enduro Sensor Specifications

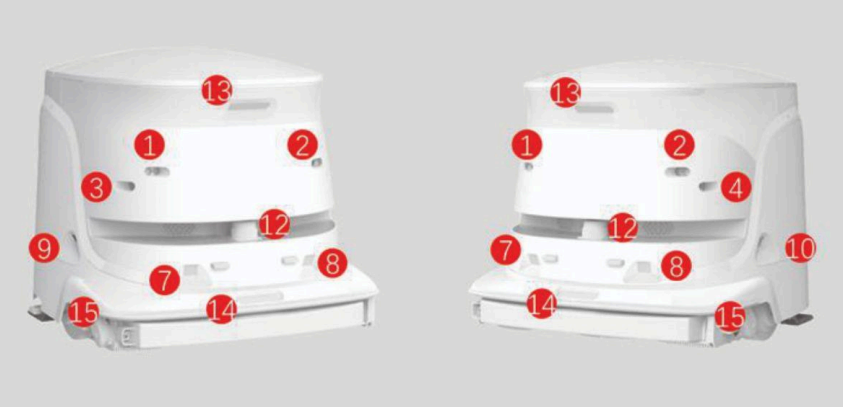

No.   Sensor Name Sensor Location Installation Height  Measuring Range FOV
1  Ultrasound Front  34.5cm 0.02~0.25 m (0.3 m) 60°
2 Ultrasound Front  34.5cm 0.02~0.25 m (0.3 m) 60°
3 Ultrasound Front  31.7cm 0.02~0.25 m (0.3 m) 60°
4 Ultrasound Front  31.7cm 0.02~0.25 m (0.3 m) 60°

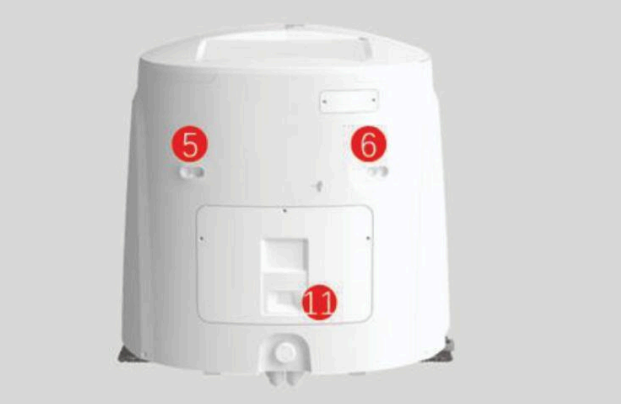

5 Ultrasound Rear 35.2cm 0.02~0.25 m (0.3 m) 60°
6 Ultrasound Rear 35.2cm 0.02~0.25 m (0.3 m) 60°
7 Solid State Line Laser Front 17.1cm 0.025-0.3 m 50°
8 Solid State Line Laser Front 17.1cm 0.025-0.3 m 50°
9 Solid State Line Laser Left 21.1cm 0.025-0.3 m 50°
10 Solid State Line Laser Right 21.1cm 0.025-0.3 m 50°
11 Solid State Line Laser Rear 17.1cm 0.025-0.3 m 50°
12 LiDAR Front 23.7cm 0.05 ~ 50 m ± 108.8°
13  Depth Camera Front 46cm 0.2~4 m

H73.8° V58.8°  D86.4°
14  Depth Camera Front 15.8cm 0.2~4 m H73.8° V58.8°  D86.4°
15 Bumper Strip Front 14.2cm
