The VRS 55 Enduro robot and its charging dock use light indicators to show the current status of the machine. Understanding these light signals can help you identify what the robot is doing or if it needs attention.

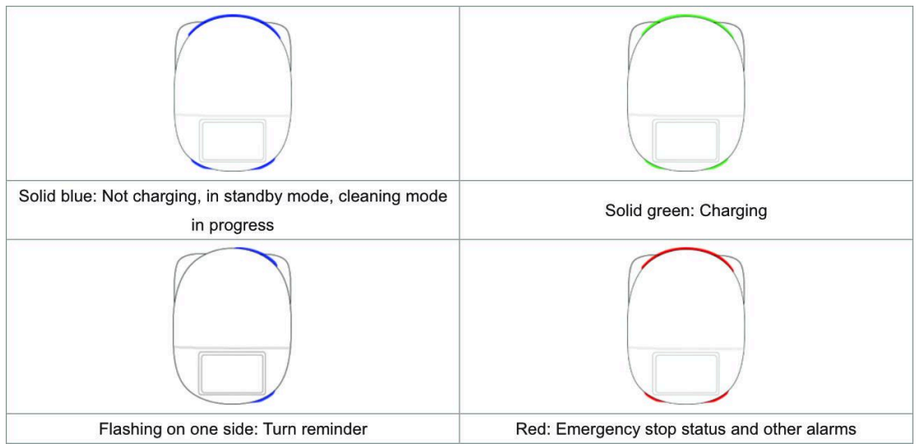

1. Robot Light Strip Indicators
The robot has light strips on both the front and back. Each colour or pattern represents a different status.
| Light Pattern | Meaning |
|---|---|
| Solid blue | Robot is not charging. It is in standby mode or cleaning is in progress. |
| Solid green | Robot is charging on the dock. |
| Flashing on one side | A turning reminder is active. |
| Red | Emergency stop or an active system alarm. |

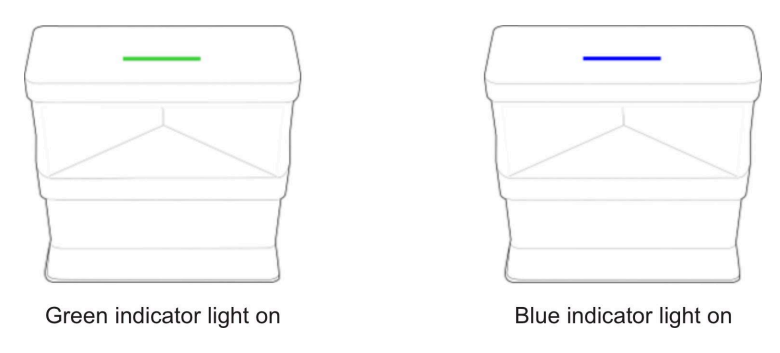

2. Charging Dock Indicator Lights
The charging dock also shows its status using a single light strip.
| Dock Light Colour | Meaning |
|---|---|
| Green | Dock is powered and the robot is currently charging. |
| Blue | Dock is powered but the robot is not charging. It may be misaligned. |
If the robot remains in red light status or charging does not begin, please contact the Floorbotics support team for further assistance.
