Regularly cleaning the charging contacts and infrared sensors on your VR 35 helps maintain smooth operation, accurate navigation, and reliable docking. Dust build-up on these components may cause performance issues if not addressed.
1. Turn Off the Machine Before Cleaning
-
Power off the robot and disconnect it from the charging dock.
-
Ensure your hands are dry during maintenance.
2. Clean the Charging Contacts
-
Locate the two metal charging contacts on the rear underside of the robot.
-
Use a dry, soft cloth to gently wipe off any dust, smudges or residue.
-
Also, clean the corresponding contact points on the cleaning dock.
-
Avoid using liquids or wet wipes on electrical contacts.

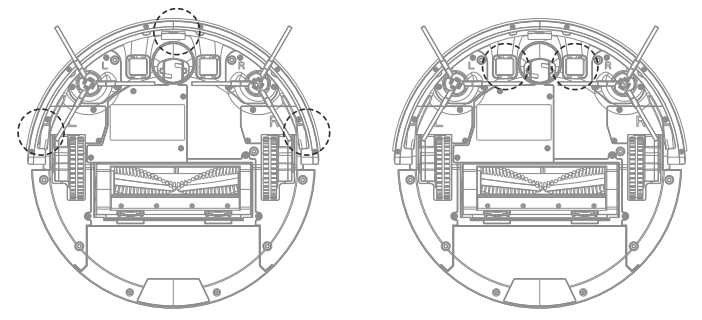

3. Wipe the Infrared and Navigation Sensors
Clean the following sensor areas:
-
Bottom cliff sensors (underneath the unit)
-
Wall-edge sensors (side of the unit)
-
Laser and infrared sensors (front panel)
-
Recharging alignment sensor and radar unit
Use a clean, dry microfibre cloth to wipe each sensor area carefully.
If needed, use a small soft brush to remove trapped dust from narrow spaces.
4. Clean the Recharging Signal Transmitter on the Dock
-
Locate the signal transmitter on the charging dock.
-
Wipe the area gently with a dry cloth.
-
Ensure nothing is covering or blocking the signal.
Important Notes
-
Clean these components at least once a month, or more frequently in dusty environments.
-
Never spray water or use cleaning sprays directly on the robot or dock.
-
If sensors remain dirty, it may affect navigation, docking accuracy, or dust collection timing.
